Bussmann Eaton - 170L8020 Fuse 800A 1000V and similar items

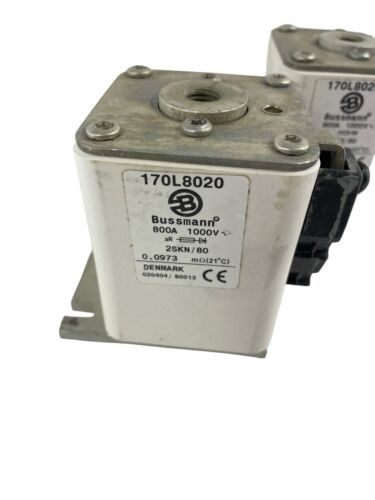

BUSSMANN - 170L8020 FUSE 800A 1000V 2SKN/80 AR HIGH SPEED - EUROPEAN SQUARE BODY FUSE 800A 1000V 2BKN/80 AR - Fuse-link, high speed, 800 A, AC 1000 V, size 2, 61 x 77 x 81 mm, aR, IEC, UL, single indicator LOT OF 2 UNITS NEW Product name Eaton Bussmann series high speed square body fuse Part no. FUSE 800A 1000V 2BKN/80 AR EAN 5027590457217 Product Length/Depth 92 millimetre Product height 60 millimetre Product width 163 millimetre Product weight 818 gram Compliances CE Marked RoHS Compliant Certifications IEC Rated UL Recognized Product Tradename None Product Type High speed square body fuse Product Sub Type None Electrical data Amperage Rating 800 A Voltage rating 1000 Vac, 1000 Vdc Interrupt rating 100 kAIC Class Class aR Clearing (I2T) 1200000 at 1000 V, 1550000 at 1250 V Product specifications Application Semiconductor, DC Common bus, DC drives, power converters/rectifiers Fuse type Flush end BKN/80 Type K Indicator for Micro Fuse indicator Centre fuse status indicator Fuse size 2 TECHNICAL DATA ETIM 8.0 Circuit breakers and fuses (EG000020) / HRC fuse (EC004556) Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Safety fuse inserts (unspecified) ([email protected] [BAB264011]) Fuse construction type according to IEC 60269 2 Type of current AC Rated voltage AC 1000 V Rated voltage DC V Rated current 800 A Utilization category aR (accompanied semiconductor protection) Breaking capacity 100 kA Colour code None Type of fuse status indicator Other Power loss at rated current 120 W Mounting holes M10 Centre-to-centre distance of connections 80.3 mm
