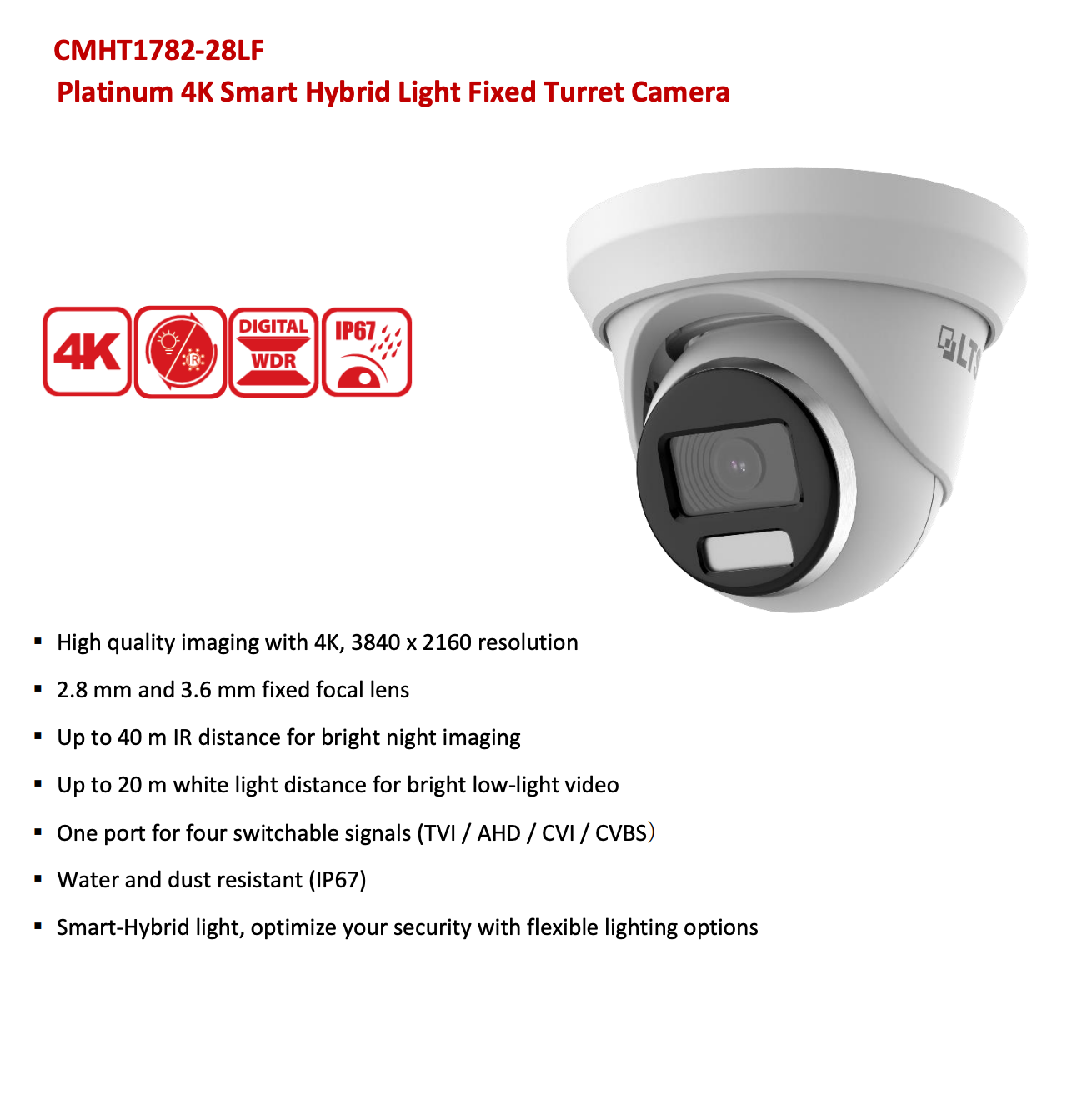

CMHT1782-28F Hd TVI/AHD/CVI/CVBS 8.29MP and similar items

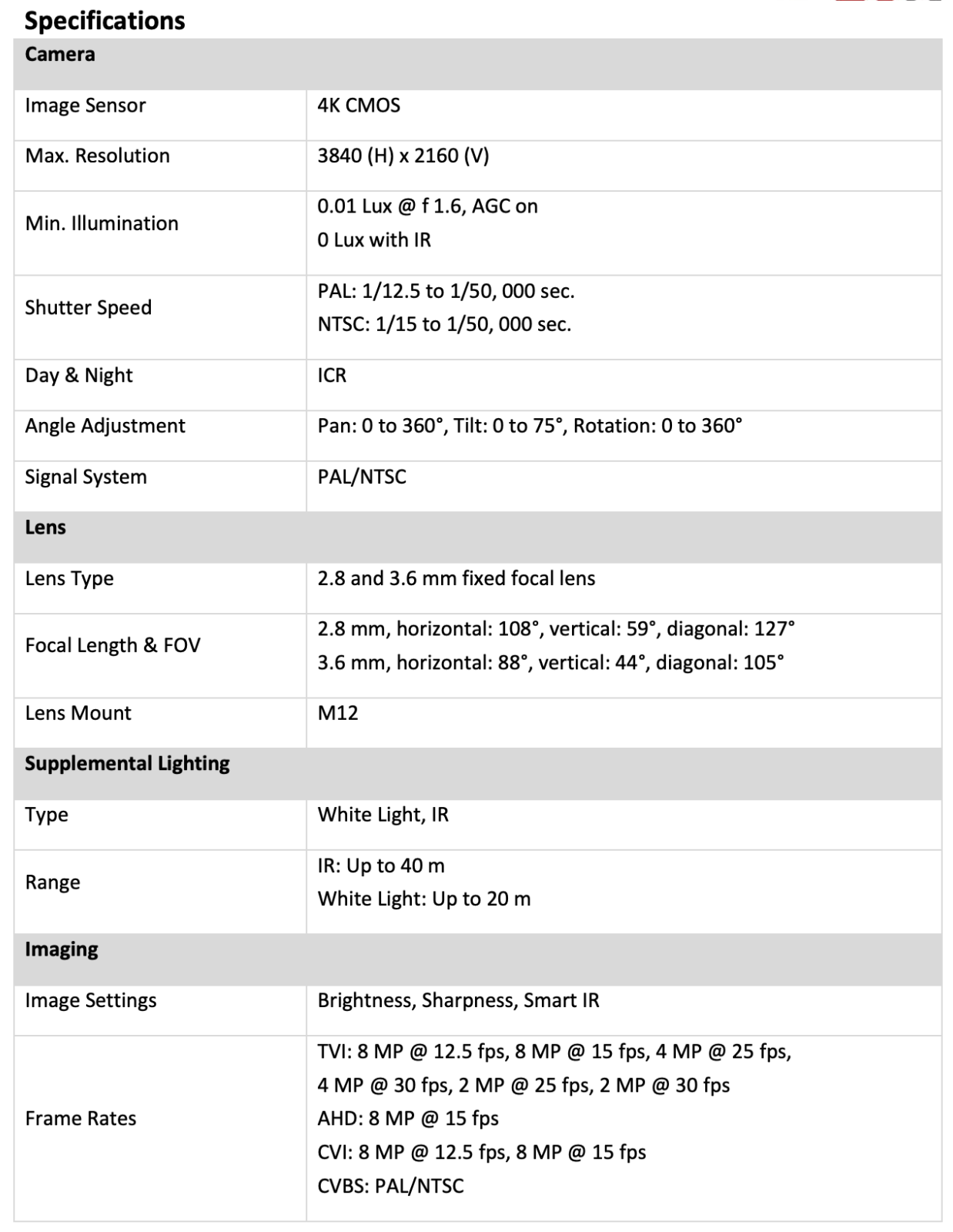

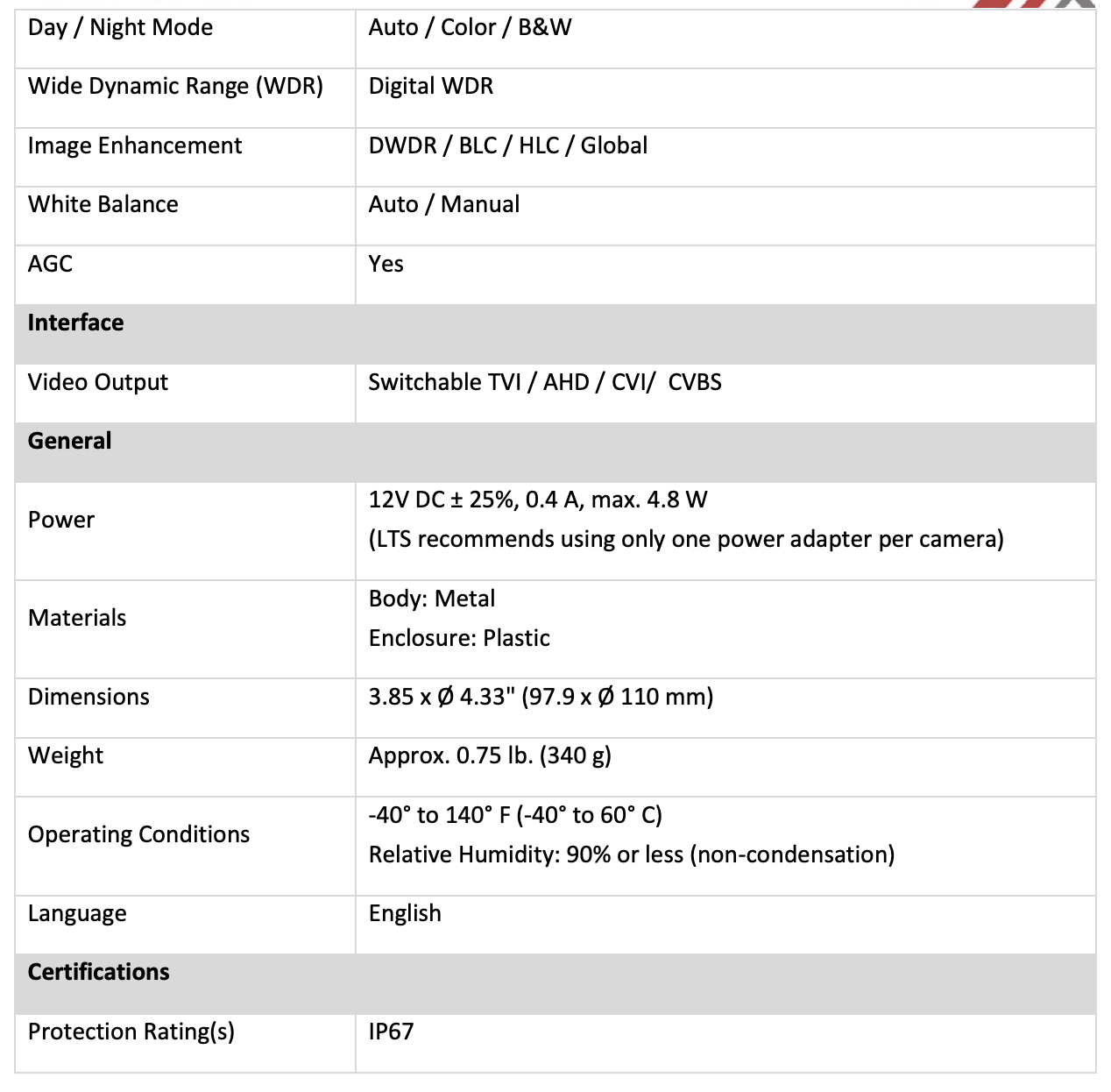

Features: 8.29MP 4K Ultra HD, 2.8 mm fixed lens, Matrix IR 2.0, smart IR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS), DWDR, DNR, IP67, OSD Menu via UTC technology 8.29 MP high performance CMOS 3840 2160 resolution 2.8 mm fixed lens Matrix IR 2.0, smart IR, up to 197ft(60 m) IR distance 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) DWDR, DNR IP67 OSD Menu via UTC technology with Platinum DVR Camera Image Sensor 8.29 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate TVI: [email protected], 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: [email protected], 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N Resolution 3840 (H) 2160 (V) Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s Lens 2.8 mm Horizontal Field of View 102.2(2.8 mm) Lens Mount M16 Day Night IR cut filter Angle Adjustment (Bracket) Pan: 0to 360, Tilt:0to 75, Rotate: 0to 360 Synchronization Internal synchronization DWDR (Digital Wide Dynamic Range) 105 dB Menu AGC Yes Day/Night Mode Auto/Color/BW (Black and White) White Balance Auto/Manual BLC (Backlight Compensation) Yes Language English Functions Brightness, Sharpness, DNR, Mirror, Smart IR Interface Video Output 1 HD analog output Switch Button TVI/AHD/CVI/CVBS General Operating Conditions -40 C to 60 C (-40 F to 140 F), humidity: 90% or less (non-condensation) Power Supply 12 VDC 25% Power Consumption Max. 5.3 W Protection Level IP67 Material Enclosure: Plastic Main body: Metal IR Range Up to 197ft(60 m) Communication Up the coax, TVI output Dimensions O 109.82 mm 91.03 mm (O 4.32" 3.6" ) Weight Approx. 320 g (0.71 lb.) We accept payment by Paypal, all major Credit card, Debit Card. Please make sure to leave item number with payment. If any special requirement needs, please leave a note while check out. Payments are expected within 7 days after the last winning auction is closed. Unpaid item (UPI) complaint will be filed with upon non-receipt of payment. Bidding on multiple auctions? Simply wait until all of the auctions have ended, and complete the checkout from the most recent email that you received from us. Once you have completed the checkout, you will not be able to combine any additional auctions. We start to process and rush your order once checkout is completed with payment. We are required to collect 8.25% Texas sales tax when Ship-To address is in Texas. We ship worldwide from United State. Most order ship in same day by 4pm central time on business day only. Please make sure the Ship-To address you input during checkout is correct. We are NOT responsible for any wrong or undeliverable addresses. Tracking number will be send to your email once the item shipped. Shipping and handling rates shown on Shipping and Payments detail section apply to 50 US States, Puerto Rico, APO and FPO addresses and other US territories with a valid US zip code. note: APO/FPO or any military address are not eligible for delivery confirmation due to postal restriction. We also charge flat rate S H for International shipment; however it may vary from country to country. Please select your country in the Shipping and Payments detail section for the rate to your country. Business Hour 9:00Am to 5:30Pm (Monday to Friday) Central Time. We try our best to answer your questions less than 4 Business Hours. Otherwise we will response your email within 1 day. We are aware that the communication problems between the seller and the buyer could be frustrating if left unresolved. We would like to let you know that we will respond to all after-sale questions based upon our knowledge. If you asked a question and did not get any response in 1day, please try again, and if you still did not get any response in the next 2 days, it could be either that we do not receive your emails or you do not get our email answers. In this case, please check your email server, email address quotas and/or spam email folder and try again, and if you still do not get any response, please call us at contact number in contact us page during the business hour. Please be ready your ID and item number before you call. Please keep all material including shipping label for return. All item has been tested before we ship out. So you will not receive defective item. Money Back Guarantee and Replacement Warranty terms start from the date you receive the item. Physically damaged items cannot be returned. If you receive a DOA (Dead on Arrival) item, please contact us within 14 days. Returns/Exchanges will not be accepted unless authorization has been issued Customer Service Department. To receive an RMA (Returns Merchandise Authorization) number please send an email to with a copy or the original invoice and return form. For more information about return policy. Please review our Return Policy page location on the bottom of the page. Chili Inc. All rights reveserved. Chili, the Chili logo are trademarks or registered trademarks of Chili Inc.
