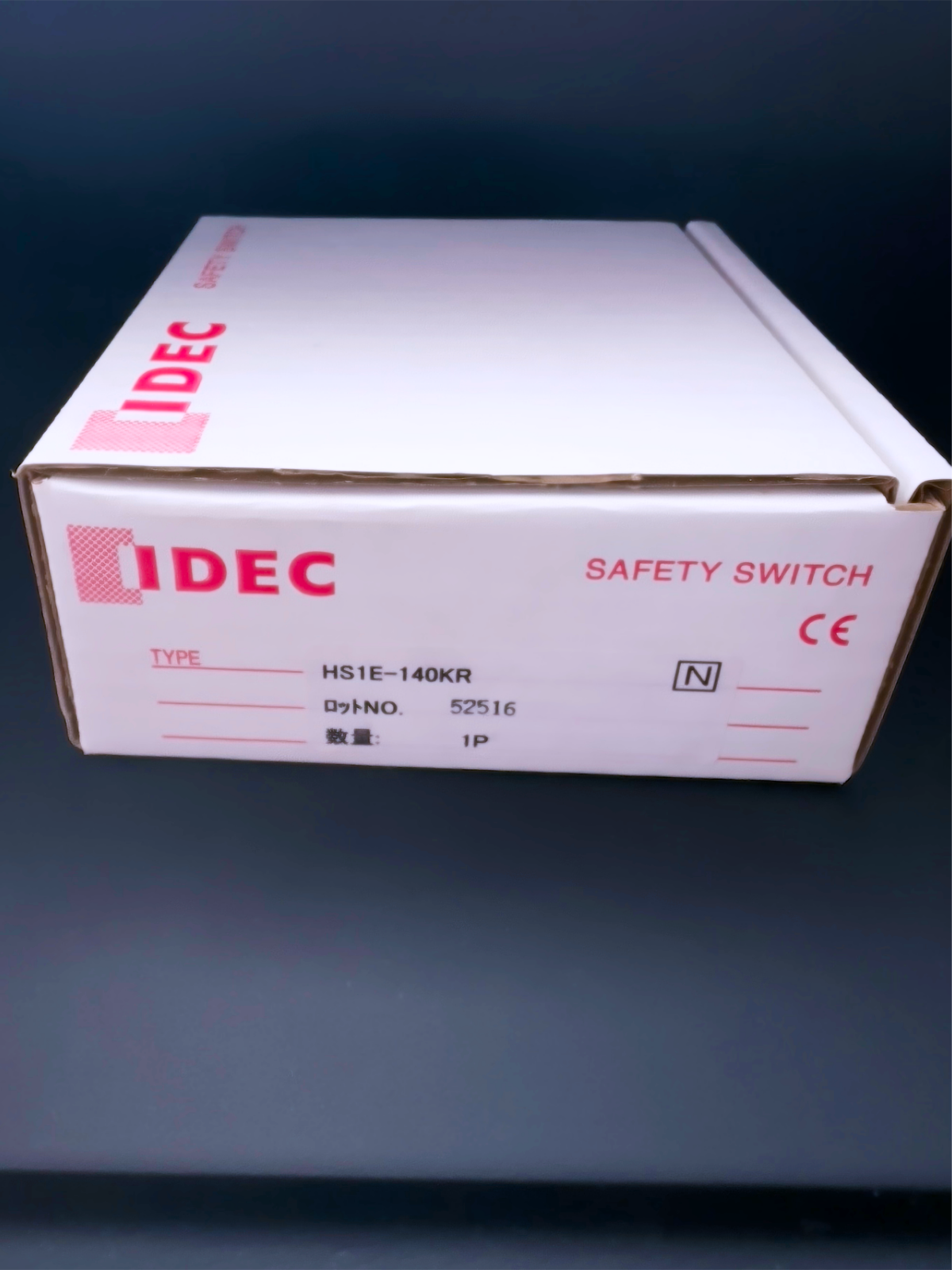

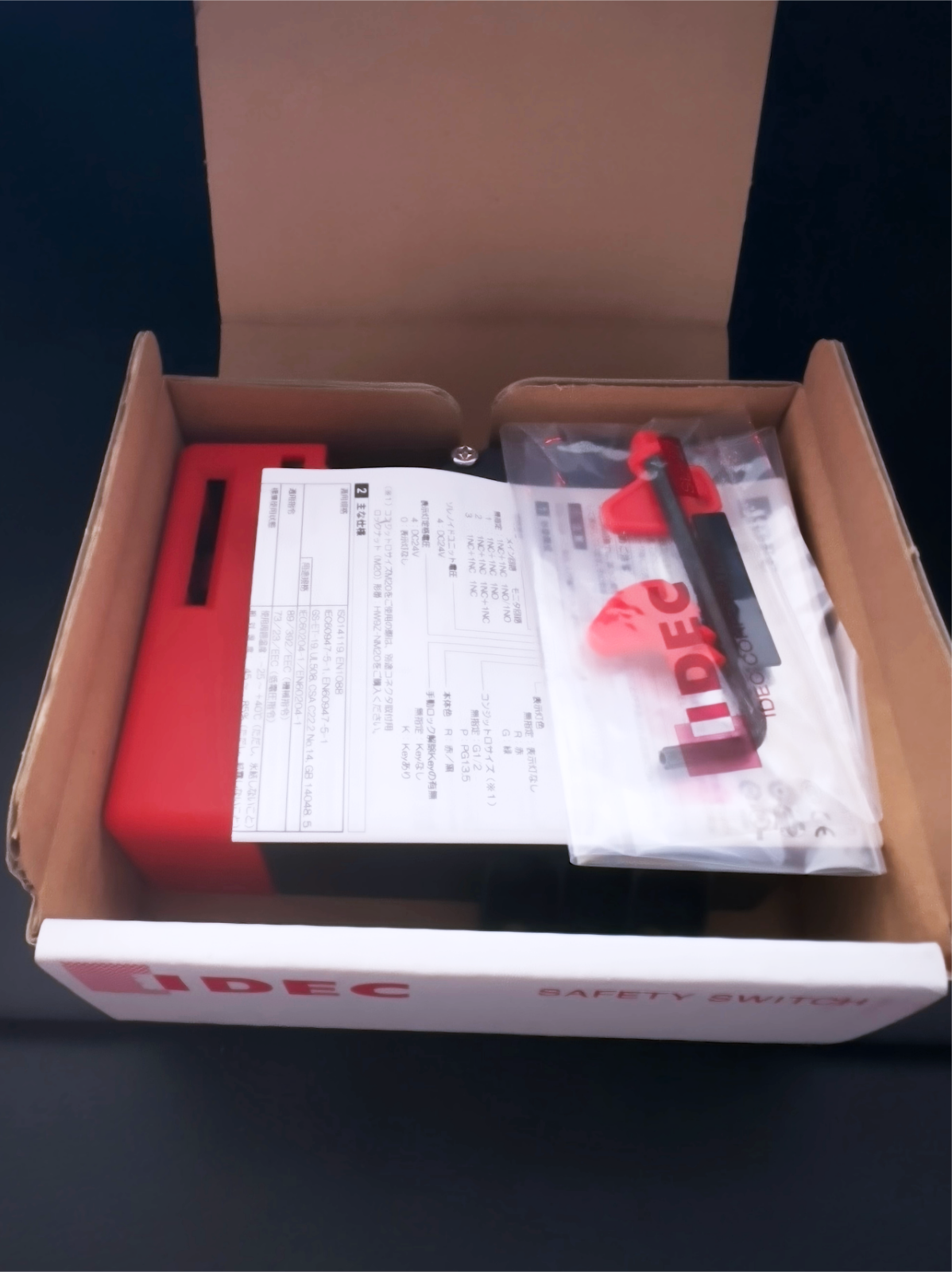

Store Seller Profile Feedbacks Contact Switches Push Buttons Safety Switches close HS1E-140KR IDEC HS1E Full Size Solenoid Locking Safety Switch 1NC + 1NC Manual Unlock Ready to Ship Ask a Question 30-Day Return Description Disclaimer Specifications Shipping Return Policy 1 Unit of HS1E-140KR IDEC HS1E Full Size Solenoid Locking Safety Switch 1NC + 1NC Manual Unlock Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Specification Conforming to Standards EN1088, IEC60947-5-1, EN60947-5-1, ISO14119, GS-ET-19, UL508, CSA C22.2 No. 14, GB14048 (CCC approval), IEC60204-1, EN60204-1 (applicable standards for use) Operating Temperature -20 to +40C (no freezing) Storage Temperature -40 to +80C Relative Humidity 40 - 85% RH (no condensation) Altitude 2,000m maximum Rated Insulation Voltage (Ui) 300V (between LED or solenoid and ground: 60V) Impulse Withstand Voltage (Uimp) 4 kV (between LED or solenoid and ground: 2.5 kV) Insulation Resistance Measured with 500V DC megger; Between live metal part and ground: 100 M? minimum; Between metal parts: 100 M? minimum; Between terminals of the same pole: 100 M? minimum Electric Shock Protection Class II according to IEC61140 Pollution Degree 3 (IEC60947-5-1) Degree of Protection IP67 Vibration Operating Extremes Resistance 10 to 55 Hz, minimum amplitude 0.35 mm Vibration Damage Limits Resistance 147 m/sec (approx. 15G) Shock Resistance 1,000 m/sec (approx. 100G) Actuator Retention Force 1,500N minimum (per GS-ET-19) Actuator Operating Speed 0.1 to 0.5 m/sec Direct Opening Travel 7 mm min. Direct Opening Force 15N minimum (latch type) Thermal Current (Ith) 10A Contact Gap 1.7 mm min., Auxiliary circuit: 1.2 mm min. Operating Frequency 900 operations/hour max. Mechanical Life 1,000,000 operations min. (at full rated load) Electrical Life 100,000 operations (at rated load) Conditional Short-circuit Current 100A (per IEC60947-5-1) Recommended Short Circuit Protection Type D01 based on IEC60269-1, 60269-2 Operating Voltage 24V DC Coil Resistance 292? (initial value) Pickup Voltage 20.4V maximum (at 20C) Drop Out Voltage 2.4V minimum (at 20C) Allowable Voltage Range 26.4V max (continuous) Insulation Class Class F Indicator Operating Voltage 24V DC Indicator Current 10mA Indicator Light Source LED lamp Indicator Lens Color Red or Green Weight (approx.) 500g Contact Ratings for Operating Voltage (Ue) AC12 30V, 125V, 250V Contact Ratings for Operating Voltage (Ue) AC15 250V Contact Ratings for Resistive load (AC1) 10A Contact Ratings for Inductive load (AC3) 6A Contact Ratings for Inductive load (AC15) 3A Contact Ratings for DC13 30V, 250V Rated Operating Current (Ie) for Resistive load (AC1) 10A Rated Operating Current (Ie) for Inductive load (AC3) 6A Rated Operating Current (Ie) for Inductive load (AC15) 3A Rated Operating Current (Ie) for DC13 30V, 250V Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue. Packaging Our items are packaged according to their needs?some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences. Links Shop Feedbacks Contact Us Sofitrek
