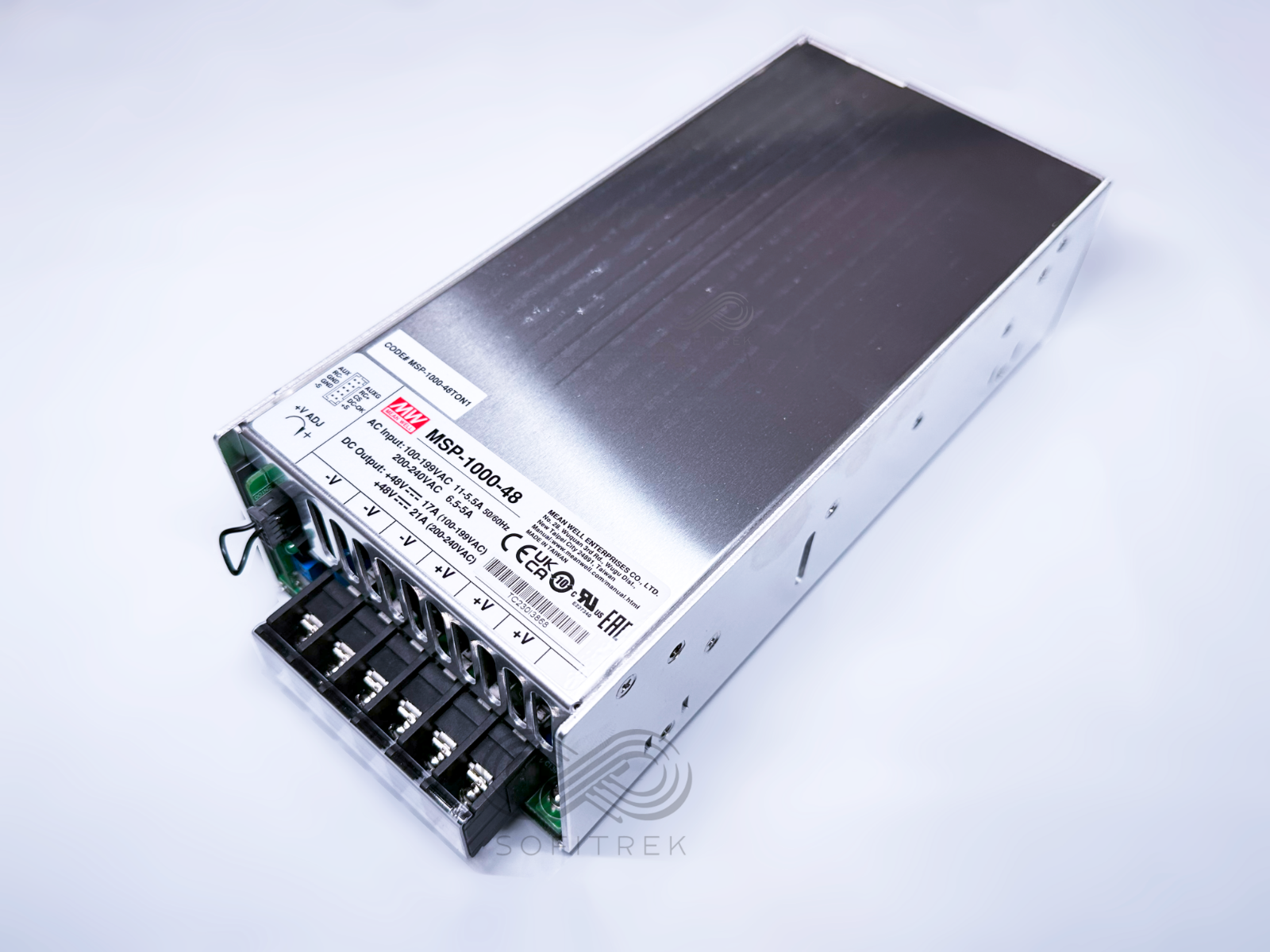

Store Seller Profile Feedbacks Contact Power Power Supplies Switching Power Supplies close 1 Piece - MSP-1000-48 MEAN WELL 1000W 48V 21A Medical AC/DC Enclosed Switching Power Supply Ready to Ship Ask a Question 30-Day Return Description Specifications Shipping Return Policy Disclaimer 1 Unit - MSP-1000-48 MEAN WELL 1000W 48V 21A Medical AC/DC Enclosed Switching Power Supply Date Code: 2203 Specification Manufacturer MEAN WELL ENTERPRISES CO LTD Model MSP-1000-48 DC Voltage 48V Rated Current 21A Current Range 0 ~ 21A Rated Power 1008W Ripple And Noise (Max) 250mVp-p Voltage Adj. Range 46 ~ 56V Voltage Tolerance 1.0% Line Regulation 0.5% Load Regulation 0.5% Setup, Rise Time 2000ms, 50ms/115VAC at full load Hold Up Time (Typ.) 16ms/115VAC at full load Voltage Range 127 ~ 370VDC, 90 ~ 264VAC (300VAC for 5 sec.) Frequency Range 47 ~ 63Hz Power Factor (Typ.) PF 0.98/115VAC at full load Efficiency (Typ.) 94% AC Current (Typ.) 5A/230VAC Inrush Current (Typ.) 20A/115VAC Leakage Current Earth leakage current 360?A/264VAC, Touch leakage current 100?A/264VAC Overload Protection 105 ~ 135% rated output power, recovers automatically after fault condition is removed Over Voltage Protection 58 ~ 65V, shuts down o/p voltage, re-power on to recover Over Temperature Protection Shut down o/p voltage, recovers automatically after temperature goes down Current Sharing Up to 4000W (3+1) Remote On/Off Control Power ON: short, Power OFF: open Remote Sense Compensate voltage drop on the load wiring up to 0.5V DC-OK Signal TTL signal out, PSU turn on = 3.3 ~ 5.6V; turn off = 0 ~ 1V 5V Standby 5VSB 5V@0.3A, tolerance 5%, ripple ? 50mVp-p(max.) Fan Control Fan on/off by NTC (RT50) or 30% load min. Working Temp. -40 ~ +70C (Refer to Derating Curve) Working Humidity 20 ~ 90% RH non-condensing Storage Temp., Humidity -40 ~ +85C, 10 ~ 95% RH non-condensing Temp. Coefficient 0.03%/C (0 ~ 50C) Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes Protections Short circuit / Overload / Over voltage / Over temperature Built-In Features Cooling fan on-off control, DC OK signal, Remote ON-OFF control, Remote sense, 5V standby output Power Supply Type Single output enclosed type AC/DC Application Suitability MRI scanner, CT and PET scanner, Medical bed, Surgery table, Medical measurement device Medical Safety Standard 2x MOPP, ANSI/AAMI ES60601-1, IEC60601-1 No Load Power Consumption 0.75W Shipping Policy Our go-to options for small to medium items are USPS Ground Advantage and USPS Priority Mail, known for their reliable tracking and peace of mind. Smaller items might qualify for USPS First Class Mail. Contact us to discuss this option before purchasing. Note: This method is less recommended due to the potential for delays. Return Policy We offer a 30-day return policy, no questions asked. If you choose to provide a reason for the return, it will assist us in improving and fix the issue. Packaging Our items are packaged according to their needs?some in ESD bags with pins secured in protective sponge, others in foam-enclosed boxes. For larger quantities, options include broken tubes for transistors or cartons. We welcome your suggestions for packaging preferences. Sofitrek Product Disclaimer Nature of Goods: All products offered by Sofitrek are surplus items. These products may originate from older batches, series, or have earlier date codes compared to those currently provided by the original manufacturers or their authorized dealers. Non-Affiliation: Sofitrek operates independently and is not an authorized distributor, nor is it affiliated or associated with the manufacturers of the products sold. Consequently, Sofitrek does not represent the manufacturers of these products in any capacity. Exclusion of Manufacturer's Warranty: Since Sofitrek is not an authorized distributor, the original manufacturer's warranties are explicitly not applicable to the products sold. This includes any implied warranties of merchantability or fitness for a particular purpose. Firmware and Software: Some products may include pre-installed firmware or software. However, Sofitrek does not guarantee the presence, compatibility, or the revision level of such firmware or software as suitable for your specific application. Furthermore, Sofitrek expressly disclaims any representation regarding your right or ability to download, obtain, or install any firmware or software for the products from any source, including the original manufacturers or their distributors. Limitation of Liability: Sofitrek shall not be held liable for any form of damages?direct, indirect, incidental, consequential, or otherwise?arising from the use, misuse, or inability to use any product sold. This includes, but is not limited to, damages for loss of profits, goodwill, use, data, or other intangible losses. The buyer assumes all responsibility for the safe and lawful use of the product and agrees to indemnify and hold harmless Sofitrek against any claims, liabilities, or expenses related to the product's use. Compliance and Responsibility: The buyer is solely responsible for adhering to all terms of any End-User License Agreement or similar documentation related to the products, particularly concerning the obtaining, installation, and use of firmware or software. Severability: If any provision of this disclaimer is found to be invalid or unenforceable, the remaining provisions shall continue to be in full force and effect. By purchasing from Sofitrek, the buyer acknowledges having read, understood, and agreed to this disclaimer in its entirety. Links Shop Feedbacks Contact Us Sofitrek
