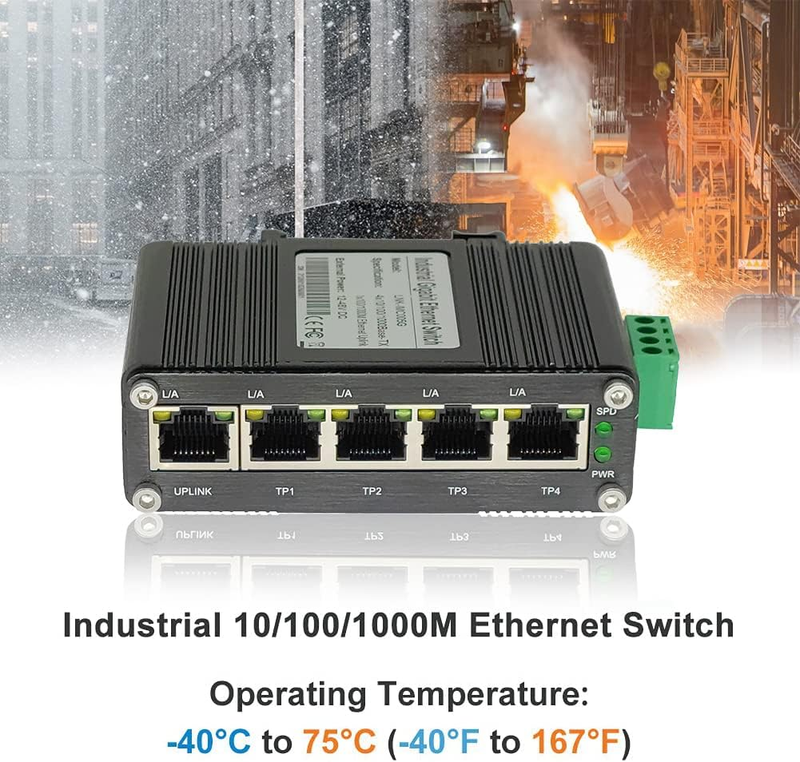

Store New Arrivals Add to Favorite View Feedback Contact Mini Industrial 5 Ports Gigabit Switch Hardened 5 Port RJ45 10/100/1000Mbps Eth Description Item model number Cent-S-005 Data Transfer Rate 1000 Megabits Per Second Maximum Power 6 Watts Platform Not Machine Specific Color black Upper Temperature Rating 167 Degrees Fahrenheit Product Dimensions 3.74"L x 2.76"W x 1.15"H Compatible Devices Desktop Item Weight 11.7 ounces Number of Ports 5 Case Material Metal Switch Type Metal Interface Type RJ45 Voltage 48 Volts, 12 Volts Current Rating 1 Amps Model Cent-S-005 Included Components 5-Port Mini Industrial Ethernet Switch, Wall Mounting Kit, Gigabit Ethernet Switch User Manual 10/100/1000Mbps Ethernet ? The Industrial 5 ports Ethernet Switch have 5 RJ45 ports 10/100/1000Mbps half/full duplex. Small Size ? The 5 ports Ethernet Switch size is 3.74x2.76x1.18in, it only need small space to install. ELECTRO MAGNETIC COMPLIANT Surge Protection ? Industrial DIN-rail switch complies with CE EN 55022 Class A standards, with surge protection design. Industrial Grade Quality ? The Hardened Mini Gigabit Switch use industrial grade components and aluminum housing, it can work at wide range temperature -40C to 75C (-40F to 167F). You can use it in outdoor harsh environment. Din-Rail Wall Mount ?The media converter come with 35mm Din-rail Clip and Wall mount accessories. Product Description Features: 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex Supports 802.3x Flow control Industry standard design, dustproof and close design IP40, rugged high-strength metal case Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control Regarding the choice of power supply: The wattage of the 5 ports switch during operation is relatively small, the power supply of 12V/0.5A and above can be selected within the input voltage range of 12~48V. However, for the stability of the work, 12V/1A power supply and above are recommended. Of course, we also have a listing of power supply , you can order directly. Compact Size: Mini switch is 20% smaller than other switches Only need small space to install Casing Material: Industrial grade components and aluminum housing (Waterproof grade: IP40) Voltage Range: 12~48V DC power input It's better to adapt unstable working voltage Installation Method: Din-Rail Wall Mount Easy to install switch on the din-rail rack mount and wall Applications: Mini industrial 5 ports gigabit ethernet switch can be used in the field of video surveillance and network solution Package: 5-Port Mini Industrial Ethernet Switch x1 Wall Mounting Kit x1 Gigabit Ethernet Switch User Manual ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full-refund or an exchange of the item. PAYMENT We accept PayPal. CONTACT US This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If there's a problem, message us! We're happy to help.
