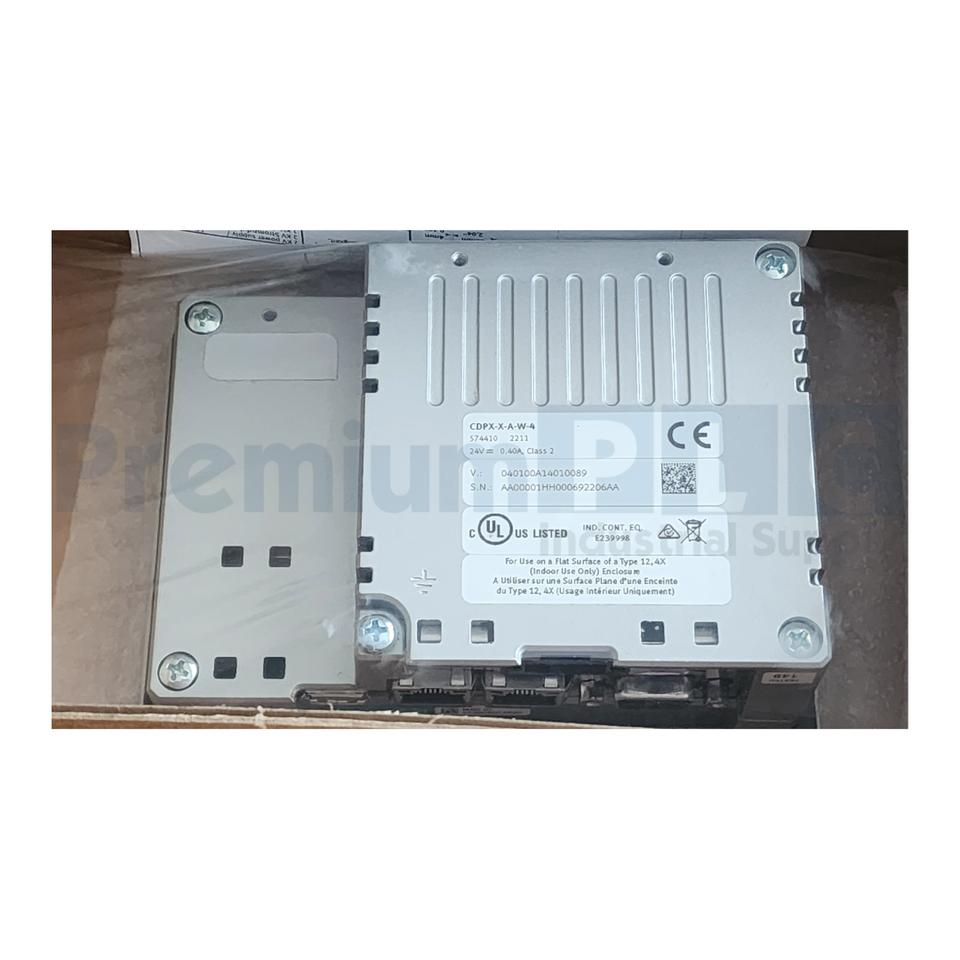

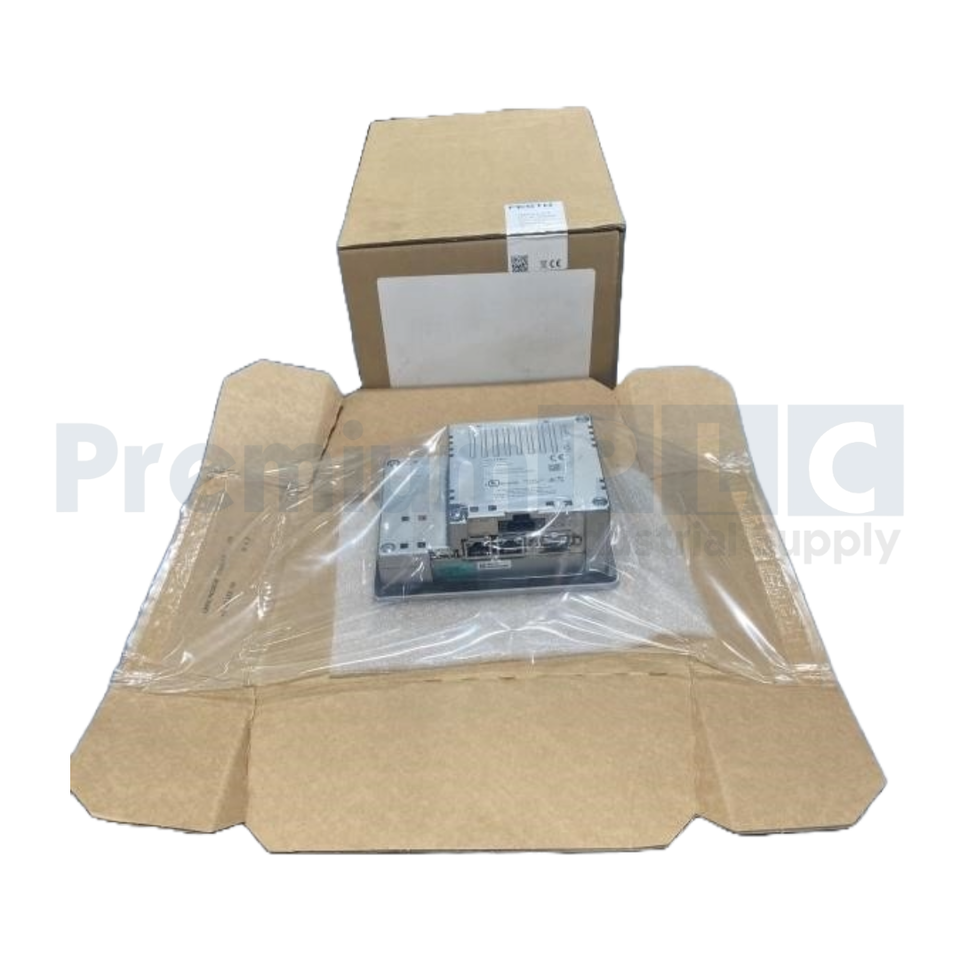

NEW FESTO CDPX-X-A-W-4 (574410) OPERATOR UNIT HMI 4" TOUCH DISPLAY CDPXXAW4 _______________________________________________________________________________ PALLET 195/194 Properties Operating voltage range DC [V] 18 to 30 Nominal operating voltage DC [V] 24 Permission C-tick c UL us - Listed (OL) Bearing temperature [C] -20 to 70 Protection category IP65 front-side, IP20 rear side ambient temperature [C] 0 to 50 Product weight [g] 1.000 Material information RoHs compliant Integration depth [mm] 56 Height [mm] 107 Length [mm] 147 Max. panel front thickness [mm] 4 Realtime clock yes Event lists 2048 Recipe memory [Byte] 32.000 Sides 1000 Tags 10000 Widget 2000 Objects on one screen 2000 User 50 Simultaneous client access 4 Trend buffer 30 Curves per trend widget 5 Recipes 32 Parameter sets per recipe 32000 Event buffer 4 Events per event buffer 2048 Alarms 2000 Javascript file size per screen [Byte] 8.000 Project size 30 Scheduler 30 Supported PLC protocols CODESYS 2.3 CODESYS 3.X ModbusRTU Client ModbusRTU Server ModbusTCP Client ModbusTCP Server Deviation realtime clock 130 s / month Quantity colours 64 k Quantity system LEDs 1 Display TFT colour Display properties Touch screen Display size 4.3" Back-up battery Li battery, rechargeable Display resolution 480x272 pixels Power input in nominal operating voltage 0.4 A CE certificate (see declaration of conformity) to EU EMC directive Relative humidity 5 - 85 % Not condensing PLC interface Ethernet RS485 USB interface yes SD card slot 1 Ethernet interface RJ45 10/100 MBd Fastening type Front panel integration Programming software Designer Studio Further information: Weight 1.000 g / pcs GTIN 4052568223021 Customs duty number 85371091 RoHS compliant Yes Manufacturer Festo CONDITION: NSMP ? New Surplus Manufacturer Package (OEM) WARRANTY: 120 DAYS (LIMITED 1 YEAR) SAME DAY SHIPPING AVAILABLE ON ORDERS MADE BEFORE 4PM EST. (CAN SHIP COLLECT ON UPS OR FEDEX ACCOUNT) ________________________________________________________________________________
